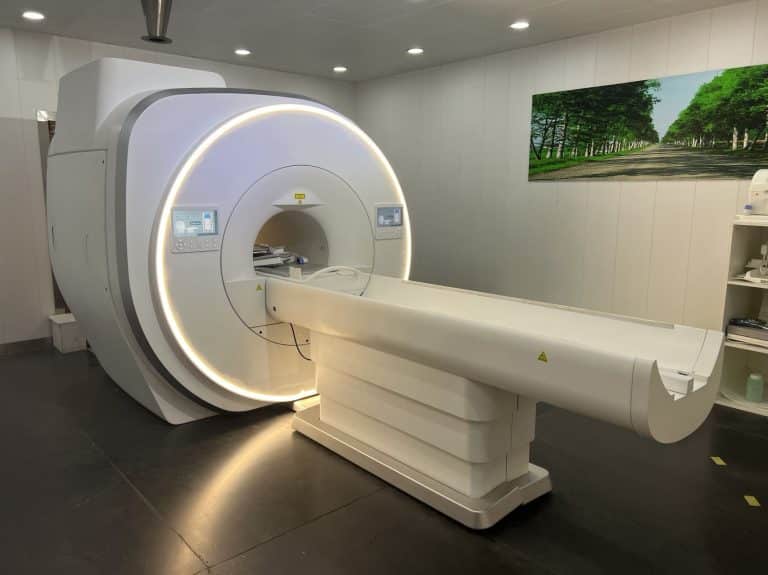

MY-D054K 1.5T Liquid Helium-Free MRI System

Core Advantages:

1. Solid Conduction Cooling Technology: Eliminates the need for liquid helium, overcoming the limitations of traditional superconducting MRI systems, such as helium consumption, safety risks, and maintenance costs. 2. AICS Acceleration Platform: Integrates advanced compressed sensing (CS) technology, parallel acquisition technology, partial Fourier acquisition technology, driven equilibrium fast spin echo (DE-FSE) acceleration technology, AI denoising technology, and Pro RADAR technology, significantly enhancing scanning speed and image quality. 3. High-End Hardware Platform: Features a 1.5T magnetic field strength, 60 cm bore diameter, 157 cm magnet length, 38.5 mT/m gradient strength, 175 mT/m/ms slew rate, 500 mm maximum field of view, 0.5 mm (2D) or 0.1 mm (3D) minimum slice thickness, 63.87 MHz operating frequency, 18 kW RF transmitter power, high SNR phased-array coils with auto-recognition, and ergonomically designed examination table and control system. 4. Comprehensive Clinical Applications: Provides a full suite of clinical imaging software for neuroimaging, musculoskeletal imaging, pediatric imaging, vascular imaging, and whole-body applications. 5. Premium Service and Support: Offers local on-site service, remote service, and customized training courses to ensure clients can fully utilize the system’s advantages. The MY-D054K 1.5T Liquid Helium-Free MRI System redefines performance, safety, and cost-efficiency in medical imaging, making it the ideal choice for healthcare facilities to enhance diagnostic capabilities and patient experience. The MY-D054K 1.5T Liquid Helium-Free MRI System redefines performance, safety, and cost-efficiency in medical imaging, making it the ideal choice for healthcare facilities to enhance diagnostic capabilities and patient experience.

MY-D054K 1.5T MRI Parameters

Component	Parameter	Value
Magnet	Magnetic Field Strength	1.5T
	Bore Diameter	60 cm
	Magnet Length	157 cm
	Field Stability	0.10 ppm/hour
	Uniformity	45 cm DSV Vrms 0.4 ppm
	5-Gauss Fringe Field	4m (axial), 2.5m (radial)
	Magnet Weight	~4400 kg
	Shimming	Passive Active
Gradient System	Gradient Strength	38.5 mT/m (single axis)
	Slew Rate	175 mT/m/ms (single axis)
	Maximum Field of View	500 mm
RF System	Operating Frequency	63.87 MHz
	RF Transmitter Power	18 kW

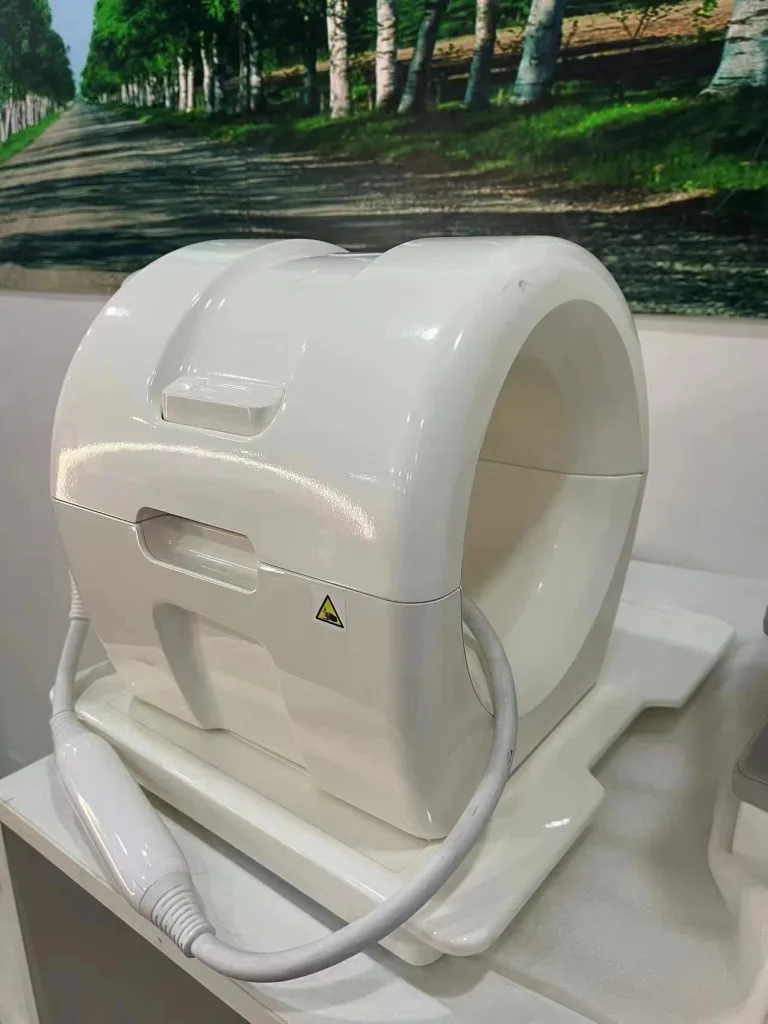

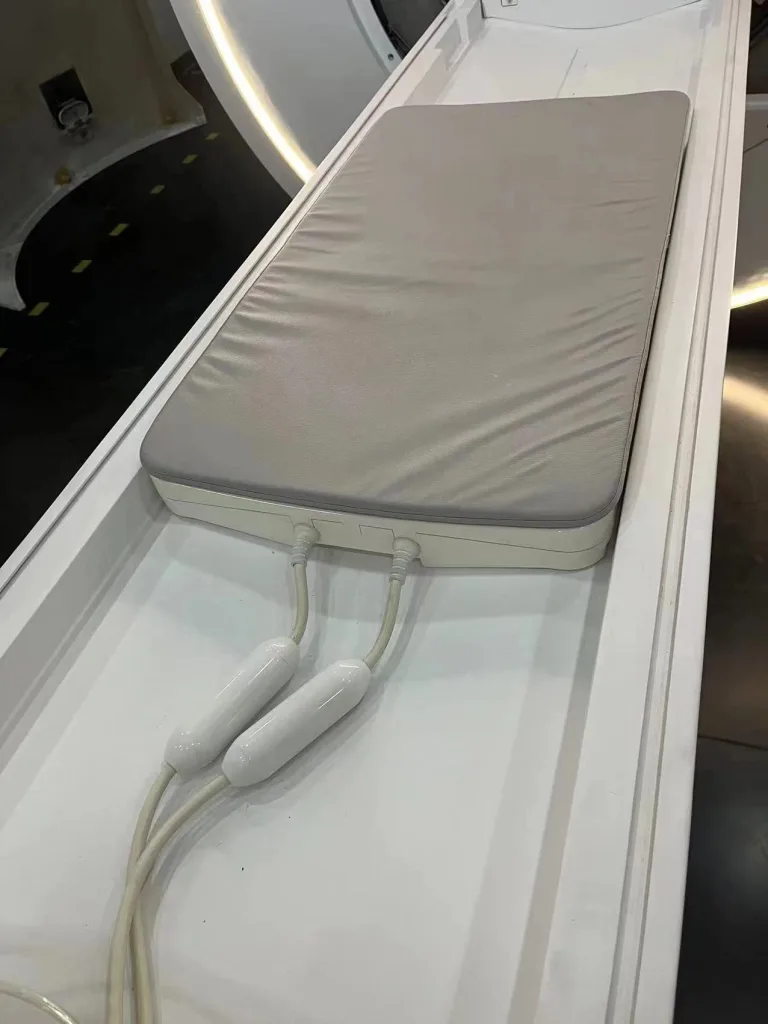

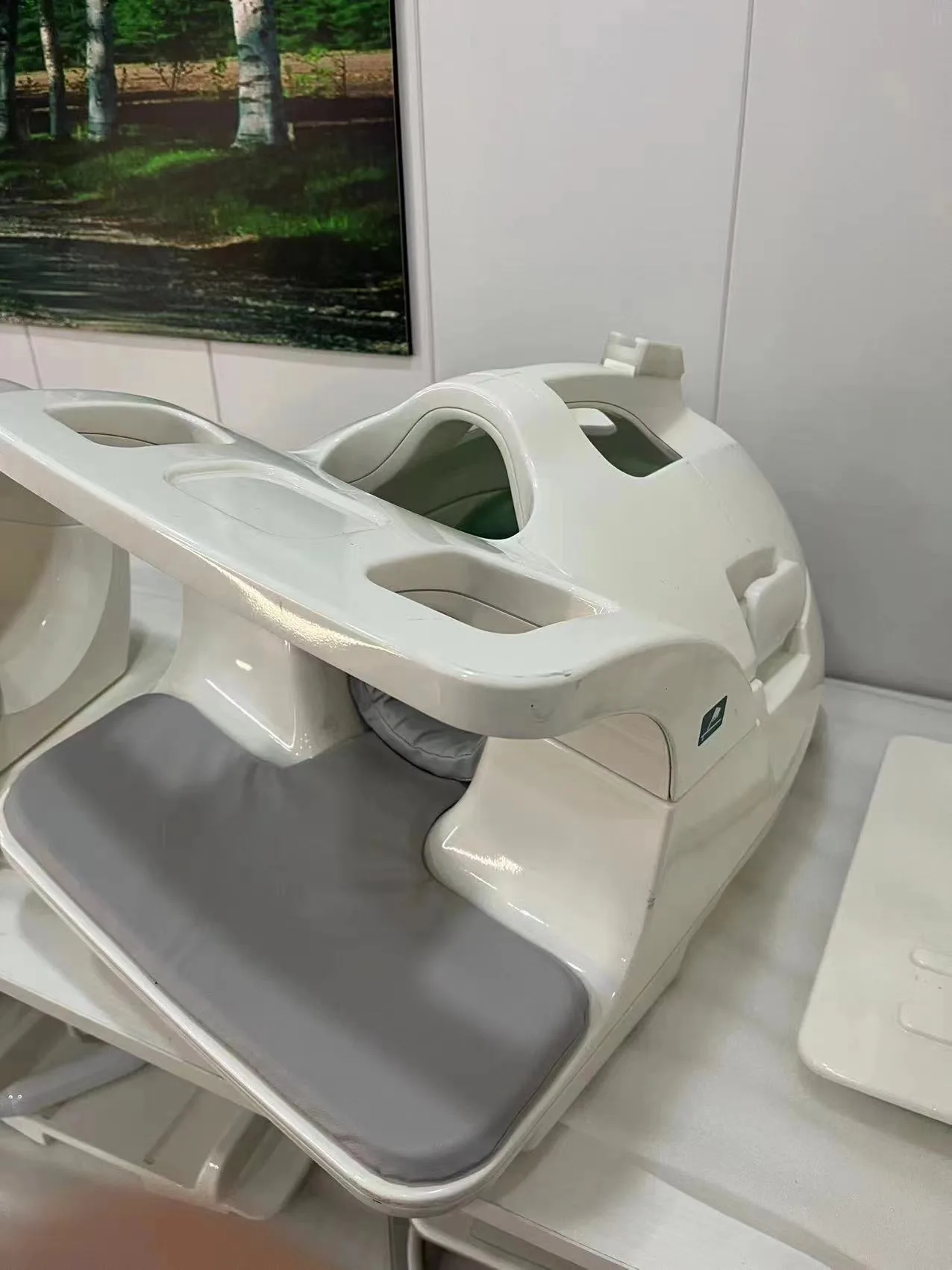

	Coil	High SNR phased array coil with auto-recognition
Patient Table	Maximum Load	200 kg
	Laser Positioning Accuracy	0.5mm
	Features	Smart electric table with vertical movement, automatic longitudinal stepping and retraction, automatic locking when the scan area reaches the center of the magnet
	Maximum Movement Range	Longitudinal: 2070 mm, Vertical: 270 mm
