High-Voltage Cables for Medical Imaging: Procurement & OEM Guidelines

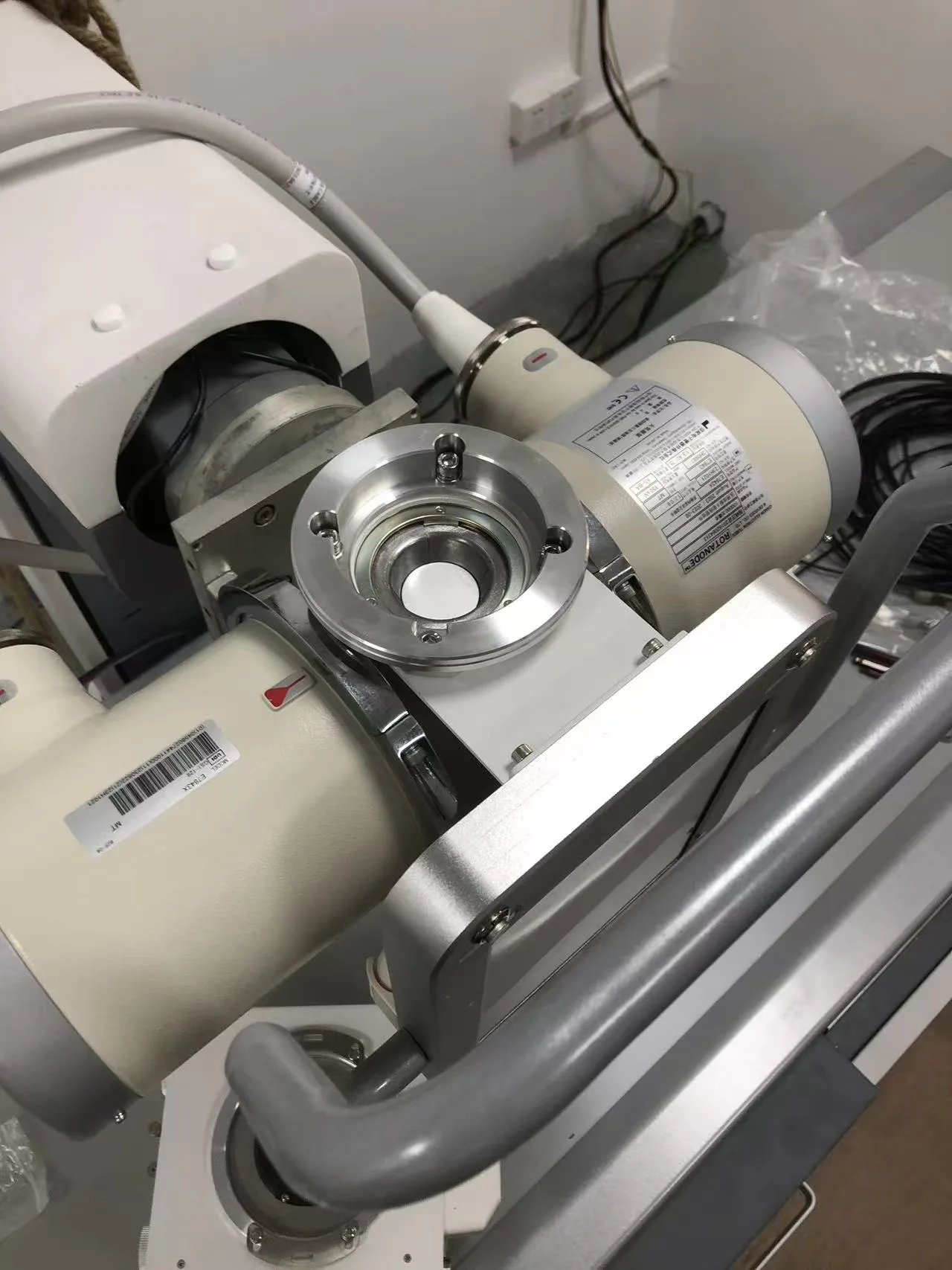

X ray tube
Medical High-Voltage Cables for Imaging Equipment | Flexible, Shielded HV Cables

High-Voltage Cables for Medical Imaging: Procurement & OEM Guidelines

Medical imaging high-voltage cables emphasize insulation stability, shielding performance, and longevity under bending stress. This guide highlights key differentiators, specifications, and common failure modes for procurement and technical teams.

📡 Medical Imaging
⚡ 60–150 kV
🔋 Milliamp-level current

Why Medical High-Voltage Cables Differ from Power Distribution Cables

Hospital “high-voltage” cables differ fundamentally from power grid cables. Medical imaging systems require the delivery of high voltage at extremely low currents under precise stability to X-ray tubes or accelerators, prioritizing surface insulation consistency, EMI shielding, and bending durability over long-distance power transmission or environmental ruggedness.

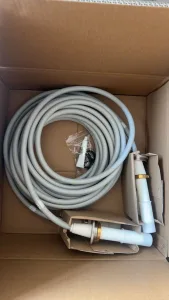

X-ray machine high-voltage cables

Key Technical Requirements (Mandatory for Procurement)

  • Voltage/Current: High voltage + milliamp-class current. Always verify peak values and duty cycles per equipment specs.
  • Insulation: Radiation-resistant and immune to surface tracking/partial discharge (e.g., medical-grade silicone, modified cross-linked polyolefin).
  • Shielding: Recommend composite shielding (braided copper + aluminum foil) to reduce imaging noise and EMI.
  • Mechanical: Small diameter, compact bending radius, and high flex-life to accommodate frequent movement in portable equipment.

Common Failures & Mitigation Strategies

Failure modes frequently reported by hospitals/tech teams:

  • Physical Damage: Use wiring channels, protective boots, or reinforced bend zones.
  • Arc Faults from Live Maintenance: Strict SOPs for power off, discharge, and cool-down periods required.
  • Chemical Corrosion: Use jacket materials compatible with disinfectants; avoid solvent-exposed ordinary jackets.

Purchase Specifications Checklist

SpecificationRecommendation
Rated Voltage Confirm against tube/accelerator specs (e.g., 60–150 kV). Verify peak voltage and duty cycle.
Current Typically milliamp level. Provide equipment current range requirements.
Minimum Bend Radius Provide routing paths and flex cycles to determine lifecycle durability.
Shielding Recommend composite shield (braided copper + foil) to reduce EMI/image noise.
Termination Medical-grade heat shrink or epoxy/molded connectors for moisture and chemical resistance.

Testing, Certifications & Documentation

Require suppliers to provide HiPot (high-potential) test reports, termination integrity records, and disinfectant compatibility statements. Request partial discharge test records的照片 for acceptance.

Custom Options & Export Compliance

Available with disinfectant-resistant jackets, reinforced bends, embedded fiber sensing/thermal elements for remote monitoring. Shipping includes factory test certificates, packing lists, and export compliance documents per destination regulations.
