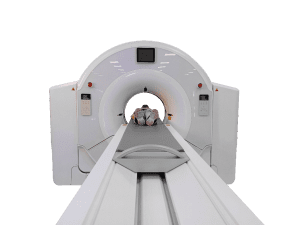

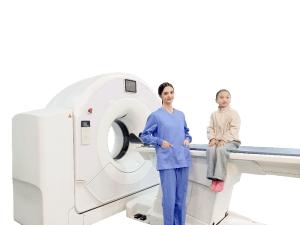

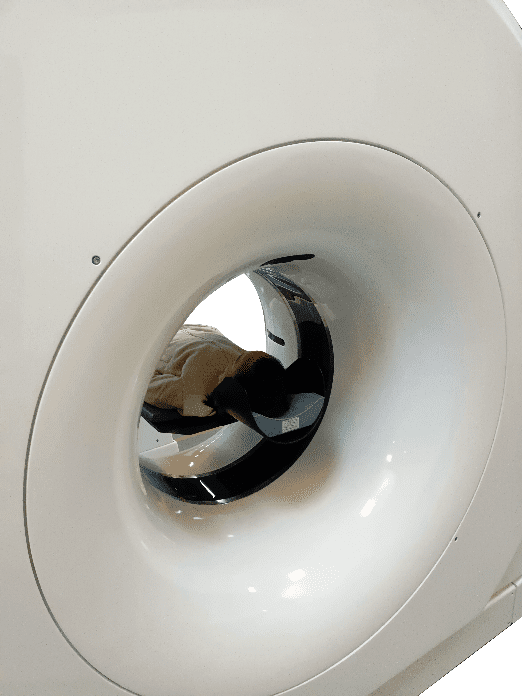

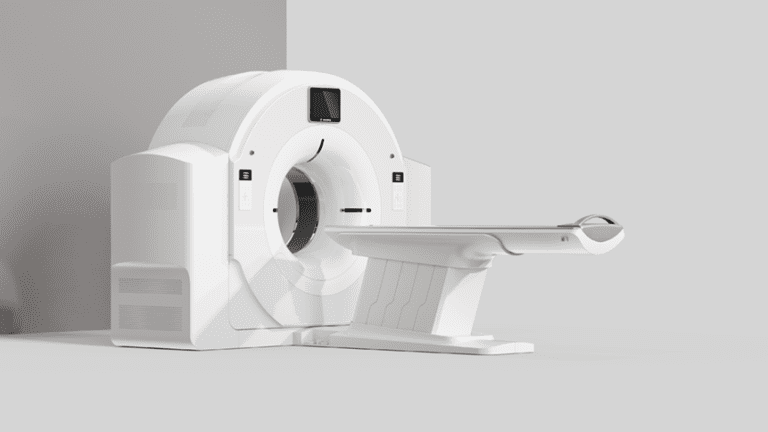

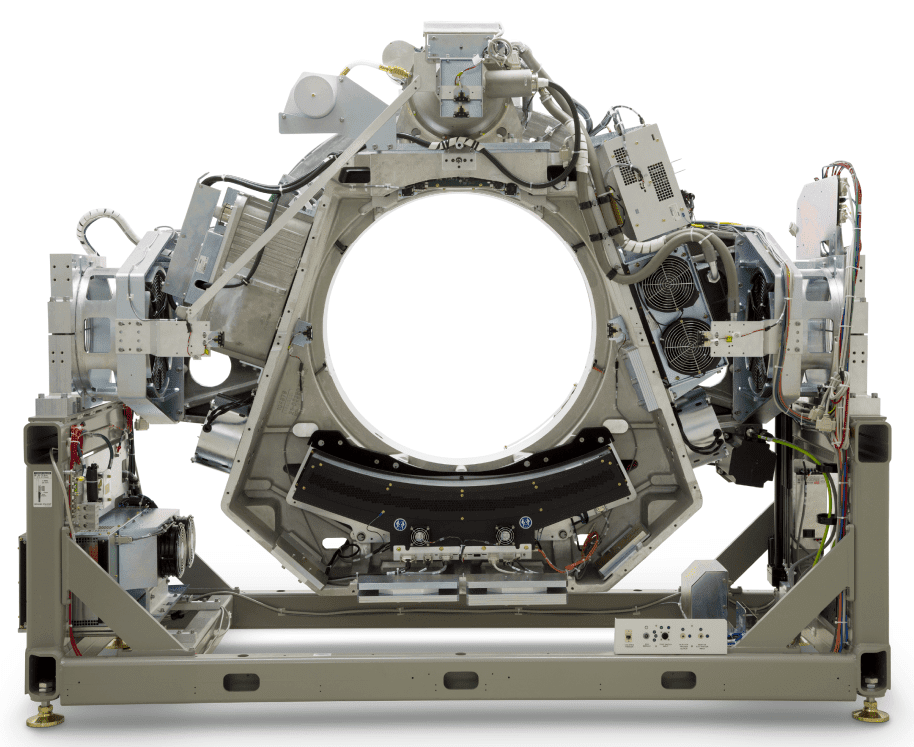

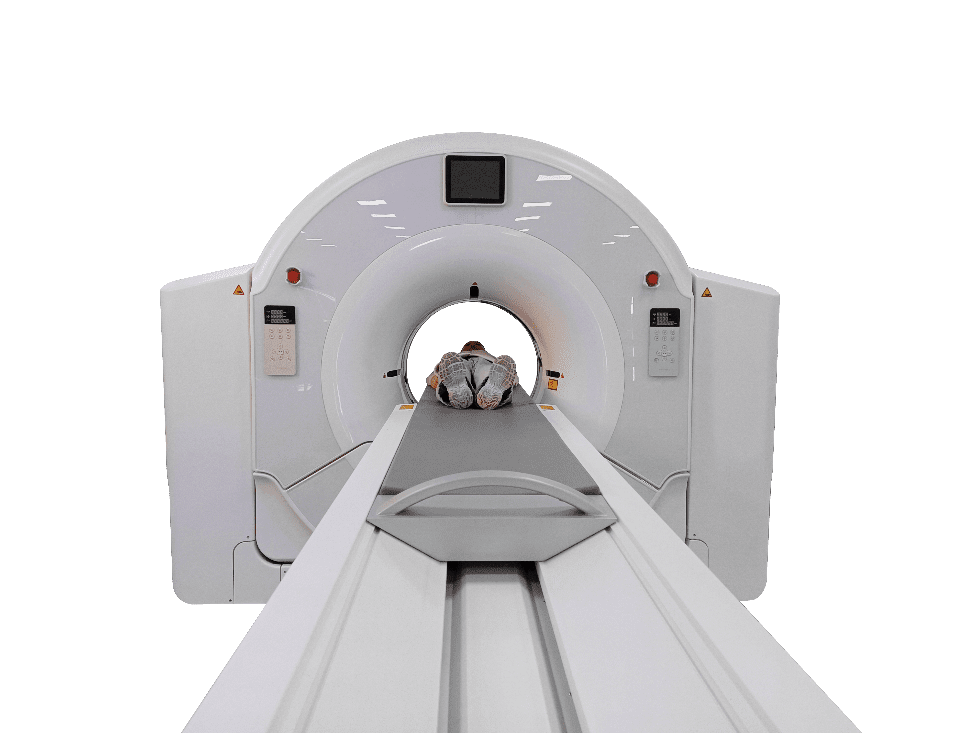

MY-D055C-D

128 slice (with cardiac) CT system

The newly designed MY-D055C-D features a high-end hardware platform, equipped with a high-capacity X-ray tube and high-resolution detector. This system enables high-speed, high-definition, low-dose imaging, achieving a perfect balance between image quality and radiation dose. It offers powerful post-processing capabilities and optional AI-assisted diagnostic analysis to support efficient, precise diagnosis. It is particularly adept at full-body vascular imaging and coronary artery scans, providing a solid foundation for advanced screening.

As a high-end CT model, the MY-D055C-D offers low-dose imaging, extended continuous scanning, and low maintenance costs. Designed with clinicians, operators, and patients in mind, it is suitable for comprehensive imaging diagnostics, integrating diagnosis, treatment, and prevention. It represents the most cost-effective high-end choice for hospitals.

    Product Features

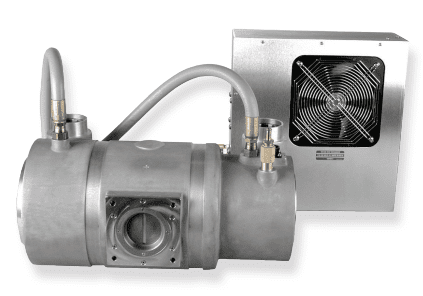

1. High Heat Capacity Metal X-ray Tube

The system uses a Varian 8M tube with a rhenium-tungsten alloy target, dual focal points, and high heat dissipation rates. This stable X-ray source ensures precise imaging. The durable metal tube minimizes wear and extends lifespan. The MY-D055C-D incorporates intelligent temperature control technology, monitoring component temperature changes in real-time and automatically adjusting to maintain stability.

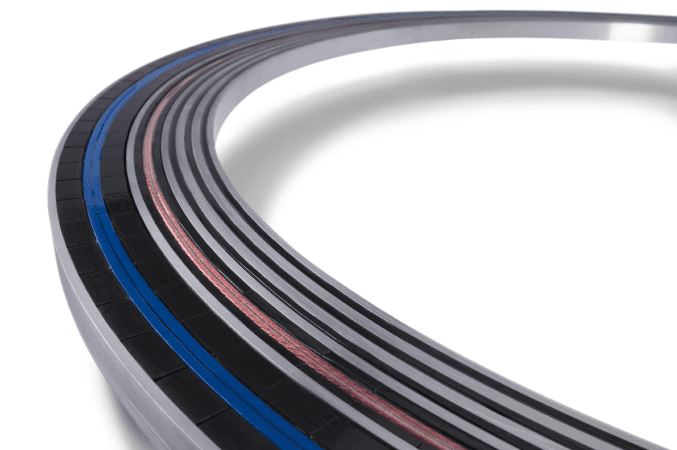

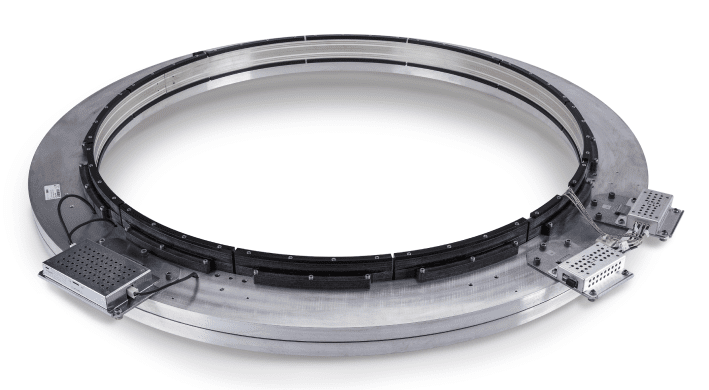

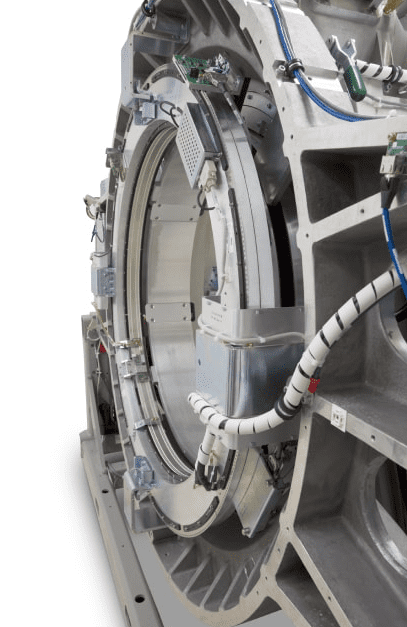

2. Non-Contact Slip Ring

The slip ring is critical in CT systems, facilitating the transmission of control commands and data. Traditional contact-based slip rings require frequent maintenance due to carbon brush wear and associated issues such as carbon dust accumulation. The MY-D055C-D solves this with an electromagnetic coupling slip ring, similar to wireless charging, eliminating the need for carbon brushes and reducing maintenance costs.

3. Intelligent Operation Platform

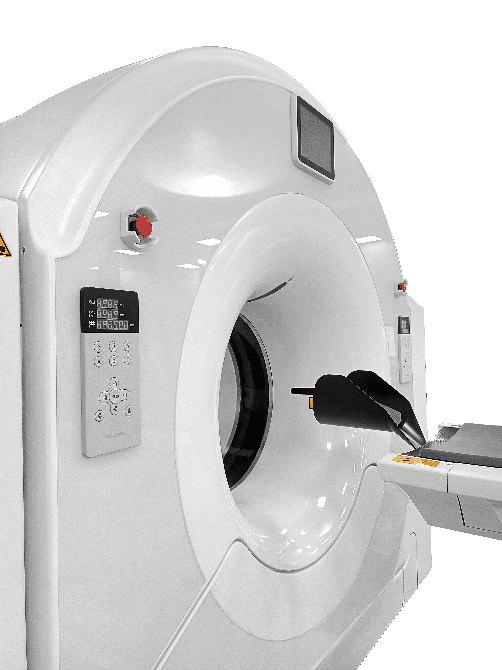

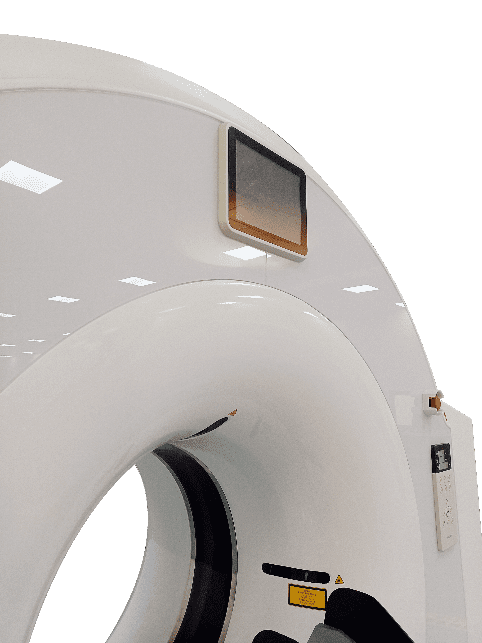

The MY-D055C-D’s intelligent platform optimizes the entire workflow from patient positioning to post-processing: – Positioning: Pre-set positioning allows for quick bed adjustments, saving time with gantry buttons. The patient information is displayed on the in-room screen to avoid errors. – Protocol Selection: Easily select pre-set or commonly used protocols. – Scanning: With a rotation speed of 0.39s/r and 64 slices per rotation, dynamic monitoring during contrast-enhanced scans ensures optimal results and reduces delays. – Reconstruction: Achieves up to 80 images per second, significantly improving efficiency. – Post-Processing: Automated workflows include one-click bone removal and support for multiple display modes (VR, MIP, MPR, CPR).

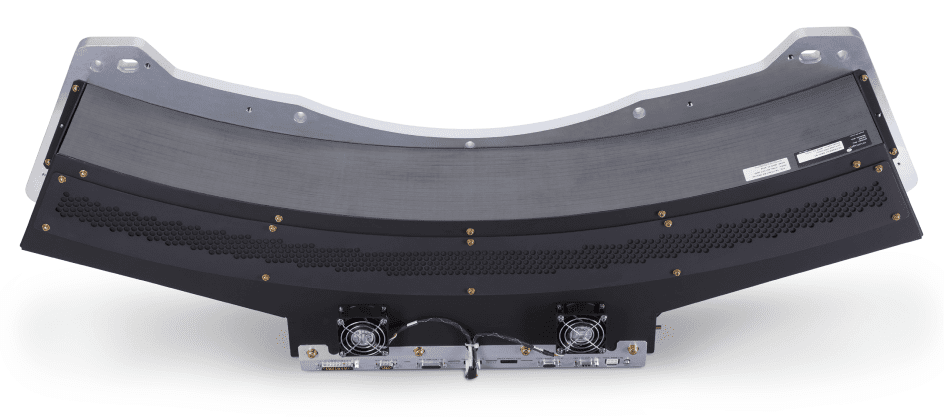

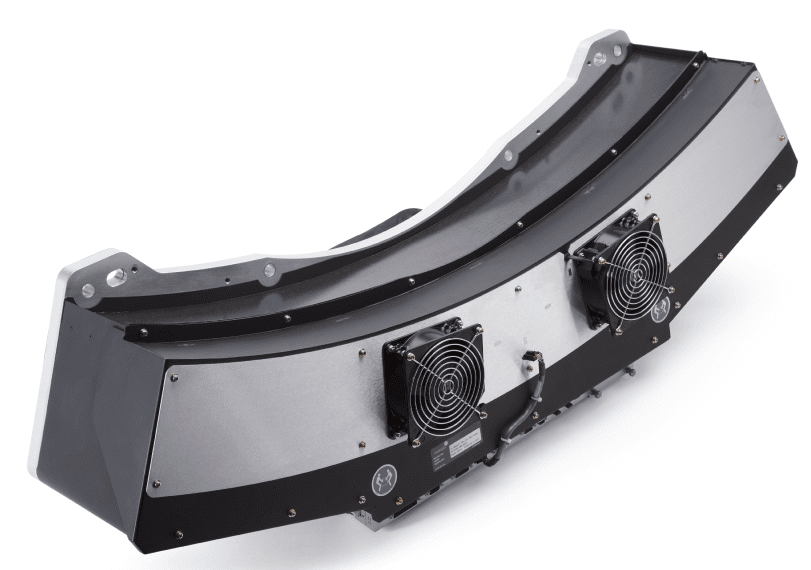

4. Advanced 64-row, 128-slice CT detector

Offers several advantages, making it a valuable tool in medical imaging. High Image Quality Increased Resolution: The 128 slices provide high-resolution images, capturing fine anatomical details, which is essential for accurate diagnosis. Isotropic Imaging: Enables isotropic voxel imaging, which allows for high-quality 3D reconstructions with equal resolution in all dimensions.   Faster Scanning: The increased number of slices allows for quicker image acquisition, reducing scan time. This is particularly beneficial in emergency situations or for patients who have difficulty staying still. Higher Patient Throughput: Shorter scan times lead to increased patient throughput, improving the efficiency of healthcare facilities. Reduced Radiation Dose Advanced Dose Reduction Technologies: 128-slice systems incorporate dose reduction technologies like iterative reconstruction, which help maintain image quality while minimizing radiation exposure, which is friendly to the child patients.   Faster Scans, Lower Dose: Faster scans can also reduce the radiation dose required, as less time is needed for each acquisition. Enhanced Diagnostic Capabilities Cardiac Imaging: The high speed and resolution are ideal for cardiac imaging, capturing fast-moving structures like the heart and coronary arteries with high precision. Multiphase Studies: Enables multiphase imaging, useful in dynamic studies like capturing arterial, venous, and delayed phases in a single exam. Improved Patient Comfort Shorter Scan Time: Less time on the table improves patient comfort, especially for those who are anxious or in pain, accommodating larger patients and reducing the claustrophobic effect.

5. Extensive Clinical Applications

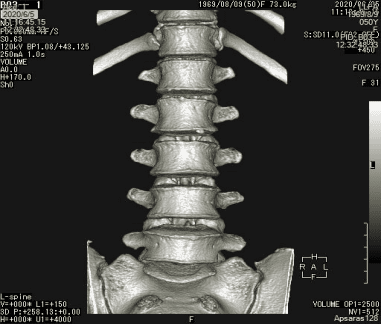

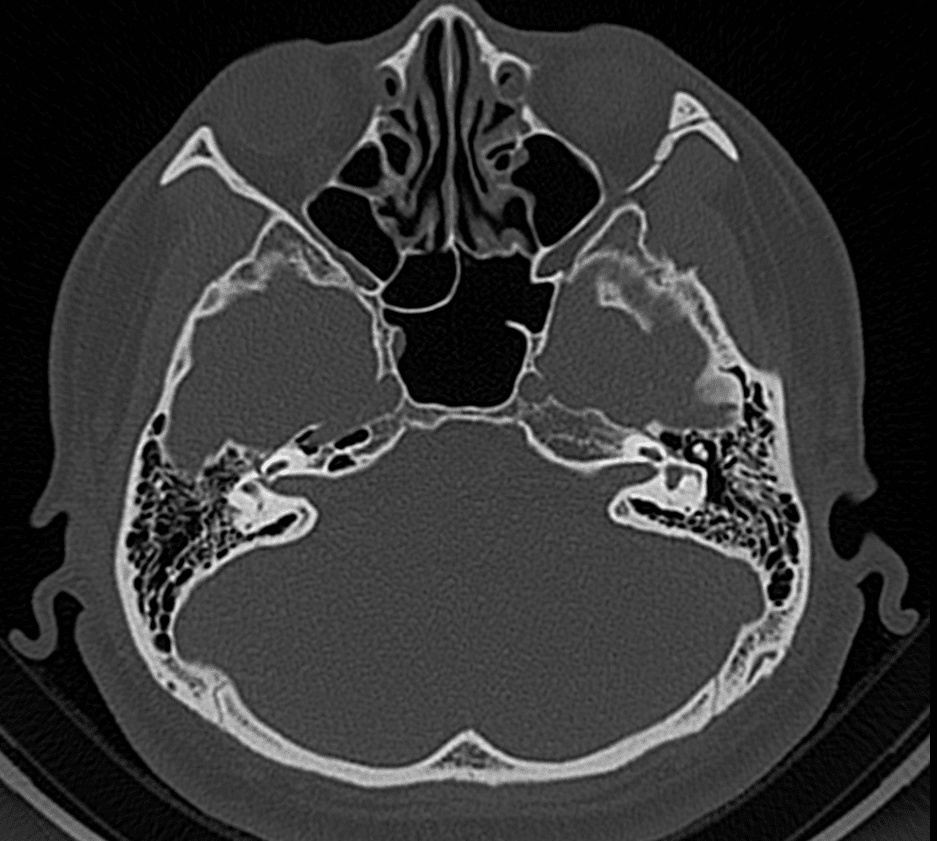

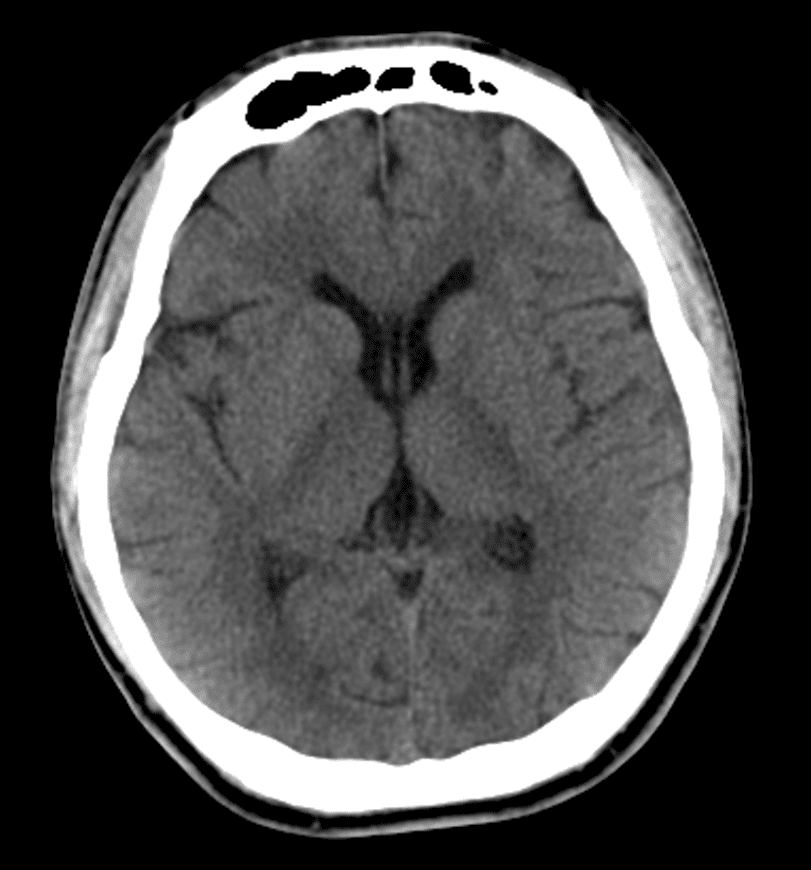

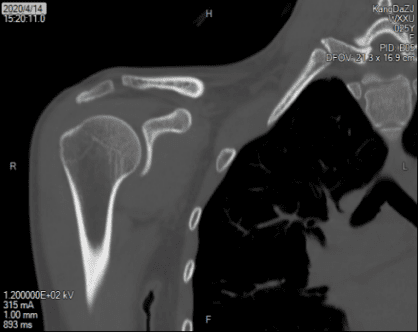

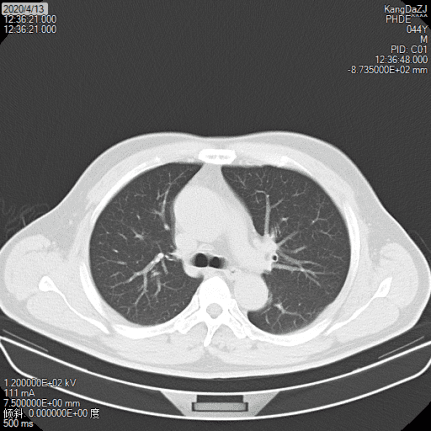

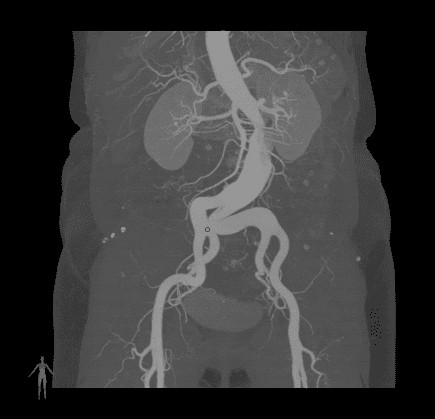

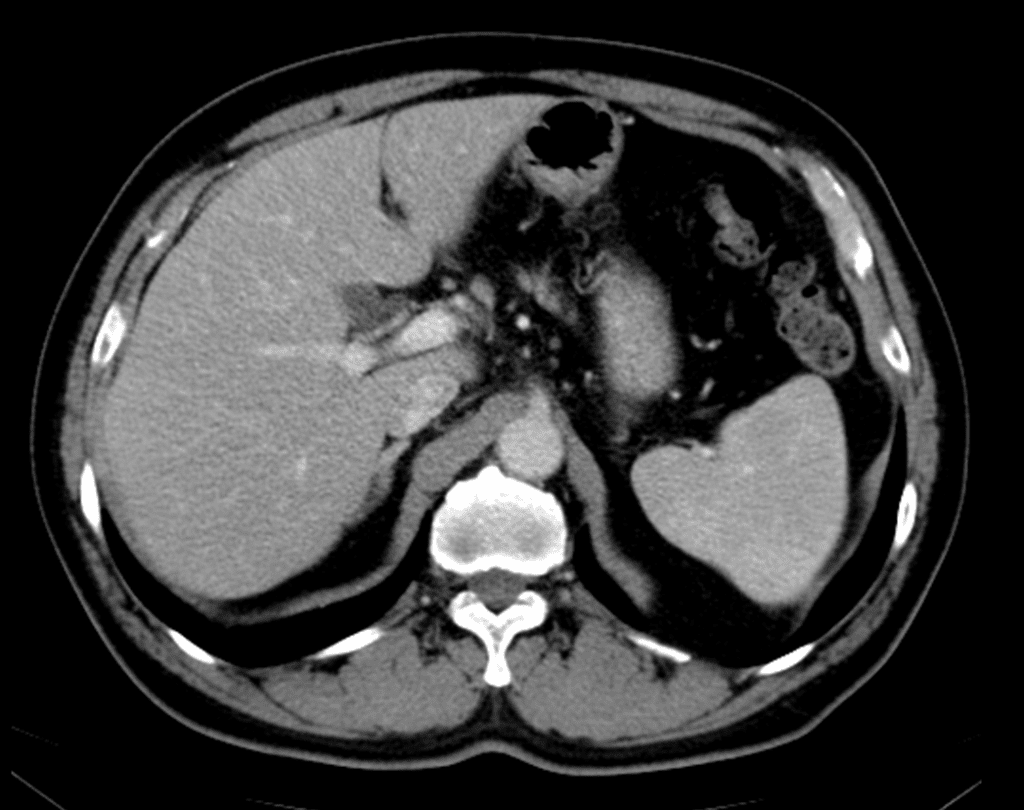

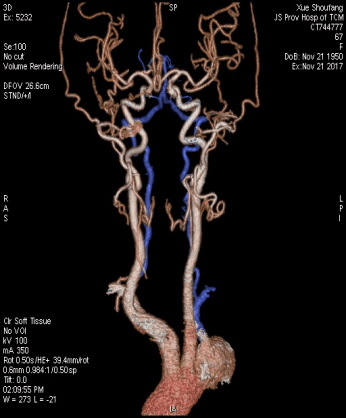

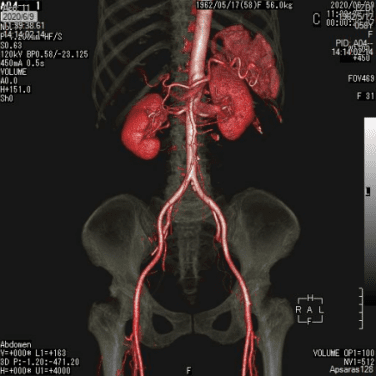

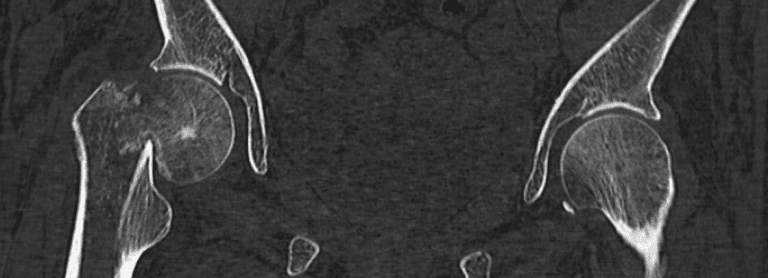

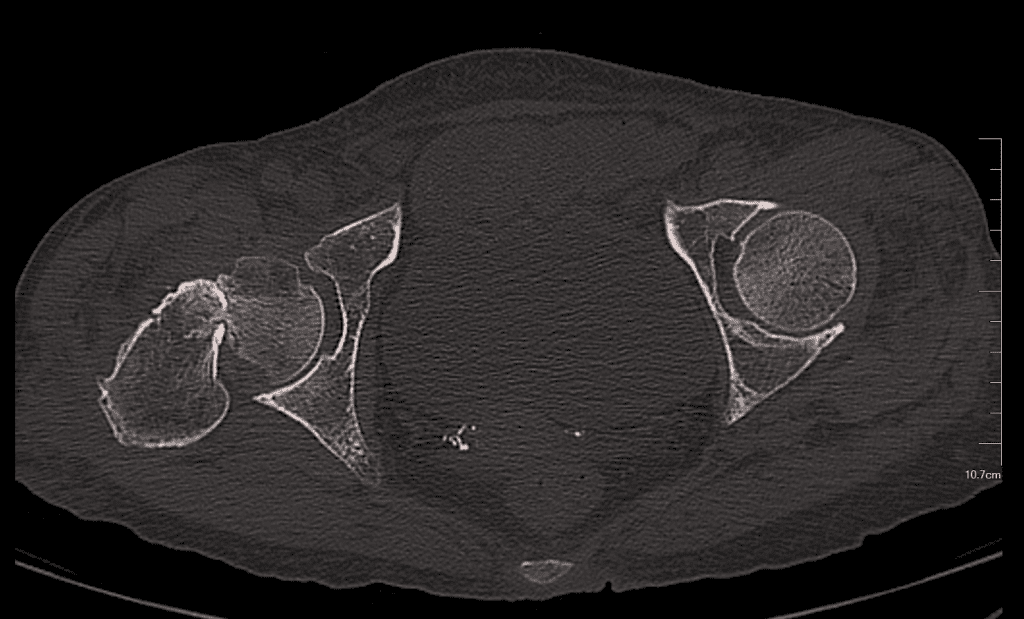

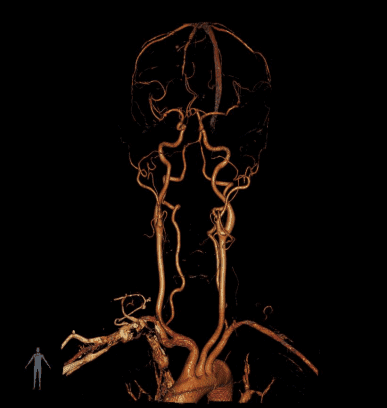

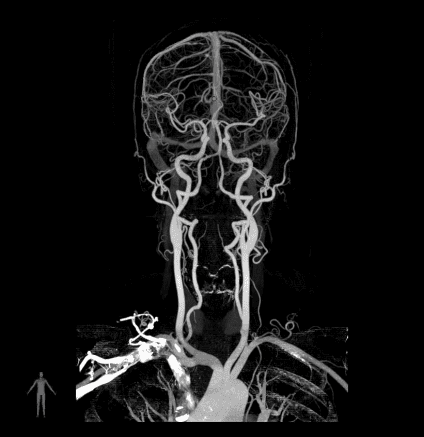

The MY-D055C-D supports a wide range of clinical functions, including patient registration, examination, and advanced post-processing features: – Multi-Planar Reconstructions (MPR) – Maximum Intensity Projection (MIP) – Minimum Intensity Projection (MinIP) – Average Intensity Projection (AIP) – Shaded Surface Display (SSD) – Volume Rendering (VR) – Virtual Endoscopy (VE) – CTA for vascular analysis – Lung nodule analysis – CT Colonoscopy – Cardiac analysis Clinical images Our Service Our company comprises many experienced engineers dedicated to providing exceptional technical support and assistance to our clients. Equipped with extensive training and expertise, our engineers are adept at promptly addressing customer needs and delivering efficient solutions. They are well-versed in the maintenance and repair of various radiology equipment, ensuring swift and accurate diagnosis and resolution of issues. We provide 3 kinds of service:

1. Local in-site service by our local engineers
2. Remote service by MAYA service center in China
3. Local in-site service by Chinese engineers

We have engineering team possesses extensive experience ranging from 5 to 10 years in the maintenance and repair radiology equipment in following countries. Uganda, Guinea, Democratic Republic of the Congo, Liberia, Ghana, Gabon, Botswana, India, Cameroon, Turkey, Tanzania, Ethiopia, Togo, Nigeria, Niger, Panama, Haiti, Somalia, Kenya, Mozambique, South Africa, Zambia, U.A. E, Malawi, Madagascar Moreover, we maintain a comprehensive inventory of spare parts specifically tailored for radiology systems.

1. Local spare parts inventory is always ready
2. In case local inventory does not have certain spare parts, the spare parts will delivery by express from China: within 2 working days pack off.

  Our training Our training programs are hands-on, allowing your team to gain practical experience with the equipment. We understand that each healthcare facility has unique needs, which is why our training programs are customized to match your specific requirements. Our expert trainers will work closely with your team, covering everything from basic operations to advanced imaging techniques tailored to your clinical applications. Our trainers are highly experienced professionals with extensive knowledge in radiology and imaging technologies. They are dedicated to providing the highest standard of education, ensuring that your staff can operate the equipment with precision and efficiency. Our training does not stop when the sessions end. We offer ongoing support to ensure that your team stays up-to-date with the latest advancements and best practices. Whether through follow-up sessions or online resources, we are committed to helping your team continue to grow their skills. Upon completion of our training programs, participants receive certification that acknowledges their expertise in operating the specific radiology equipment. This certification not only boosts confidence but also ensures compliance with regulatory standards.
