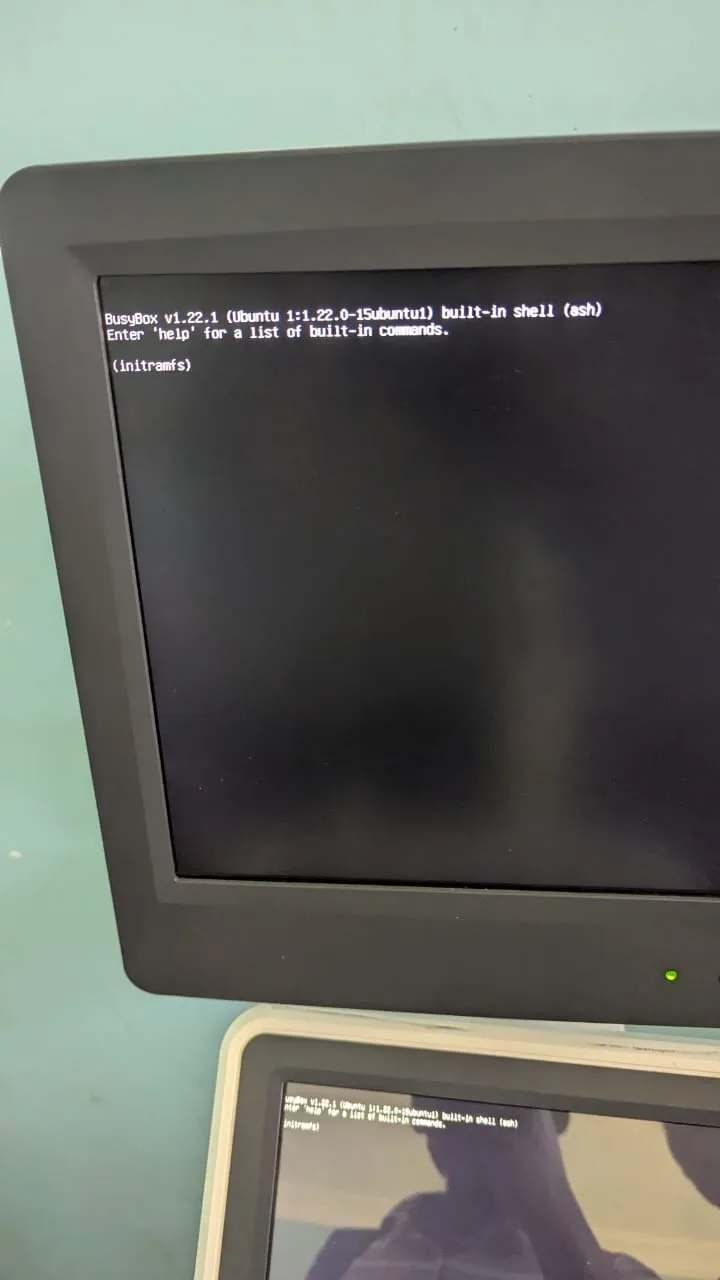

What should you do when the machine fails to start up normally (as shown in the picture below or a situation similar to the one in the picture.)?
This topic was modified 4 月 前 4 times by Nickmaya
Do a system restore:
System and software:
9436 9455 V1.0.5
APP：V1.0.5（r5893）
PRF：V1.0.5（r374）
Locale：V1.0.5（r5855）
Drivers：V1.0.5（r13889）
FPGA1： V1.0.43D
Power Board：V1.0.3
OS：XU16046V7 – 20250508（V1.0.5Release）
https://drive.google.com/drive/folders/1UetU5IbYO8WS4KKVG4468Q88pyeEF4I2?usp=share_link
Tools and Tips
Bootable Disk Tool(Pen drive tool)
rufus-4.0.exe
LiveCD-XU16042-64bit-20211115(V1.5).iso
https://drive.google.com/drive/folders/1hx-zAd9IcxTp5l_nezhLc4KGLeZYmFE_?usp=sharing
And check this file:
If you use the ultrasound machine M5, Please follow these steps:
9431 V1.0.6
APP：r5894
PRF：r110
Locale: r5855
Drivers：r13889
FPGA：V1.0.42D
Power Board: V1.0.3
OS：XU16046V7 – 20250508(V1.0.6Release)
https://drive.google.com/drive/folders/1YnsNmNcB4yvQLytexfUaPCszaAbt-Joq?usp=sharing
Bootable Disk Tool(Pen drive tool)
rufus-4.5.exe rufus-4.7.exe
LiveCD-XU16042-64bit-20240711(V1.7.3).iso
https://drive.google.com/drive/folders/1r290Dv3tVldJ2JaB1OOMPBeGIk–ghg4?usp=sharing
And check this file:
If the rufus tool is fault, please use this:
Uiso PE (Plan B for Rufus)
Uiso9_pe.exe
https://drive.google.com/drive/folders/1Ne5W1psPouASPTIFW3r9LVV9SZFKrKNl?usp=drive_link
1 Answer
0
25/09/2025 5:49 下午
Version 9415 9406 V1.0.1 is compatiable with the old models produced in 2021.
1. 9415 9406 V1.0.1
APP: V1.0.1(r4462)
FPGA: V1.0.40（数字CW）
OS: XU16042 (20210824)
https://drive.google.com/drive/folders/1YwXLBs-wcAGj8t84maeo5Kp6ZY2WIlLg?usp=sharing
2. Bootable Disk Tool(Pen drive tool)
rufus-4.0.exe
LiveCD-XU16042-64bit-20211115(V1.5).iso
https://drive.google.com/drive/folders/1hx-zAd9IcxTp5l_nezhLc4KGLeZYmFE_?usp=sharing
